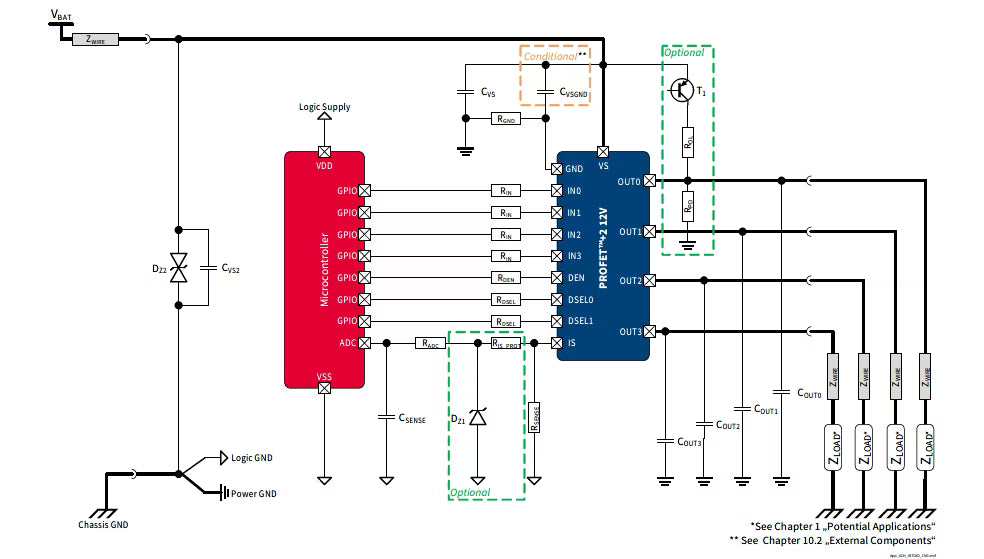

BTS7200-4EPA

• 12 V | 66.5mΩ | 1A | 4 channel smart high-side power switch | analog current sense | body control application
• Certifications
  ISO 26262-ready
• Channels
  4
• Classification
  ISO 26262-ready
• Current Limit
  7.3 A to 10 A
• Diagnostics
  Sense
• Family
  PROFET™ +2 12V
• IL Nominal Current (@ TA = 85°C)
  1 A
• IL (Short Circuit Current)
  10 A
• Load Current
  1 A
• Mounting
  SMT
• Nominal Load Current per channel (All channels active)
  1 A
• Operating Temperature
  -40 °C to 150 °C
• Currently planned availability until at least
  2038
• Qualification
  Automotive
• R_{DS (on)} (@ Tj = 25°C)
  66.5 mΩ
• R_{DS (on)} (@ Tj = 150°C) max
  120 mΩ
• Recommended Operating Voltage
  3.1 V to 28 V
• t_off (Turn OFF time) max
  100 µs
• t_on (Turn ON time) max
  110 µs
• Undervoltage Recovery Delay
